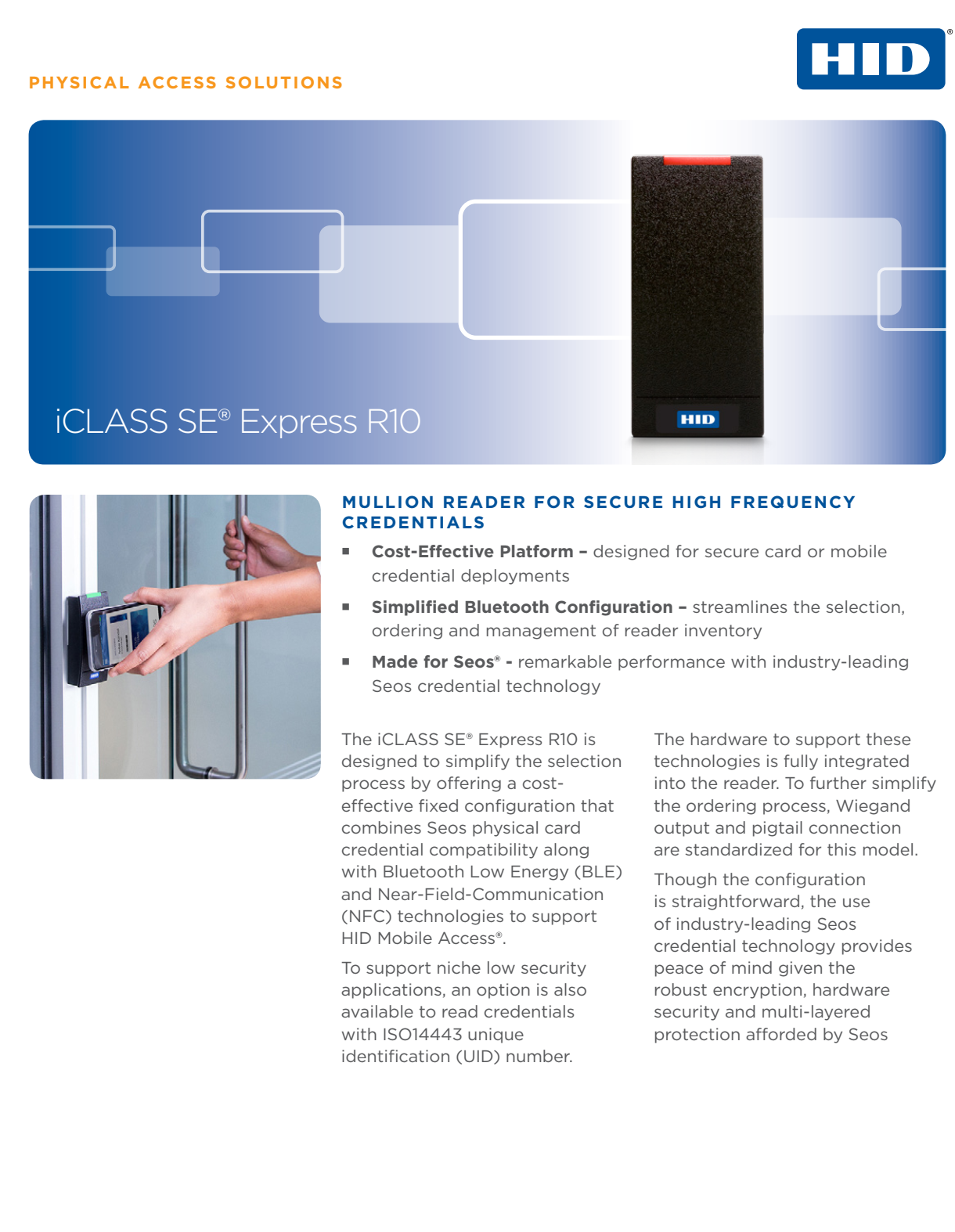

Đầu đọc thẻ HID R10
Read range listed is statistical mean rounded to nearest whole centimeter. HID Global testing occurs in open air. Some environmental conditions, including metallic mounting surface, can significantly degrade read range and performance; plastic or ferrite spacers are recommended to improve performance on metallic mounting surfaces.
TNV
- 02/02/2024 11:14:16
- Tin tức
|
Model Name |
R10 |
|
Base Part Number |
900NxxxxF |
|
Typical Contactless Read Range1 |
13.56 MHz Single Technology ID-1 Cards |
|
iCLASS® Seos: 2” (5cm) MIFARE DESFire® EV1 / MIFARE DESFire EV2: 2” (5cm) MIFARE® Classic: 2” (5cm) |
|
|
13.56 MHz Single Technology Tags / Fobs |
|
|
iCLASS® Seos: 1.2” (3cm) MIFARE® Classic: 1.6” (4cm) Mobile IDs using Bluetooth & Seos[Gray fill] Twist and Go 6.6ft (2m) Tap 5.9" (15cm) |
|
|
Mounting |
Ideally suited for mullion-mounted door installations or any flat surface |
|
Color |
Black |
|
Keypad |
No |
|
Dimensions |
1.9" x 4.1" x 0.9" (4.8 cm x 10.3 cm x 2.3 cm) |
|
Product Weight (Pigtail) |
92g |
|
Operating Voltage |
12V |
|
Current Draw - Standard Power Mode2 (mA) |
46 @ 12V |
|
Current Draw - Intelligent Power Management (IPM) Mode2 (mA) |
28 @ 12V |
|
Peak Current Draw - Standard Power or IPM Mode2 (mA) |
250 @ 12V |
|
NSC3 Power Consumption - Standard Power Mode (W) |
0.55 @ 12V |
|
NSC3 Power ConsumptionIPM (W) |
0.35 @ 12V |
|
Operating Temperature |
-35°C to +65°C |
|
Storage Temperature |
-40°C to +85°C |
|
Operating Humidity |
5% to 95% relative humidity non-condensing |
|
Environmental Rating |
IP67/ IP68 |
|
Transmit Frequency |
13.56 MHz, 2.4GHZ |
|
13.56 MHz Card Compatibility |
Secure Identity Object™ (SIO) on Seos® ISO14443A (MIFARE CLASSIC, MIFARE DESFire EV1 & MIFARE DESFire EV2) UID |
|
Communications |
Wiegand |
|
Panel Connection |
Pigtail |
|
Reader Management |
HID Reader Manager Mobile App for configuration, firmware upgrade and diagnostics |
|
Certifications |
UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), RoHS |
|
Cryto Processor Hardware Common Criteria Rating |
EAL5+ |
|
Patents |
|
|
Housing Material |
UL94 Polycarbonate |
|
UL Ref Number |
R10F |
|
Warranty |
Limited Lifetime |
- Read range listed is statistical mean rounded to nearest whole centimeter. HID Global testing occurs in open air. Some environmental conditions, including metallic mounting surface, can significantly degrade read range and performance; plastic or ferrite spacers are recommended to improve performance on metallic mounting surfaces.
- Measured in accordance with UL294 standards; see Installation Guide for details.3 NSC = Normal Standby Current; see Installation Guide for details.
- NSC = Normal Standby Current; see Installation Guide for details.
